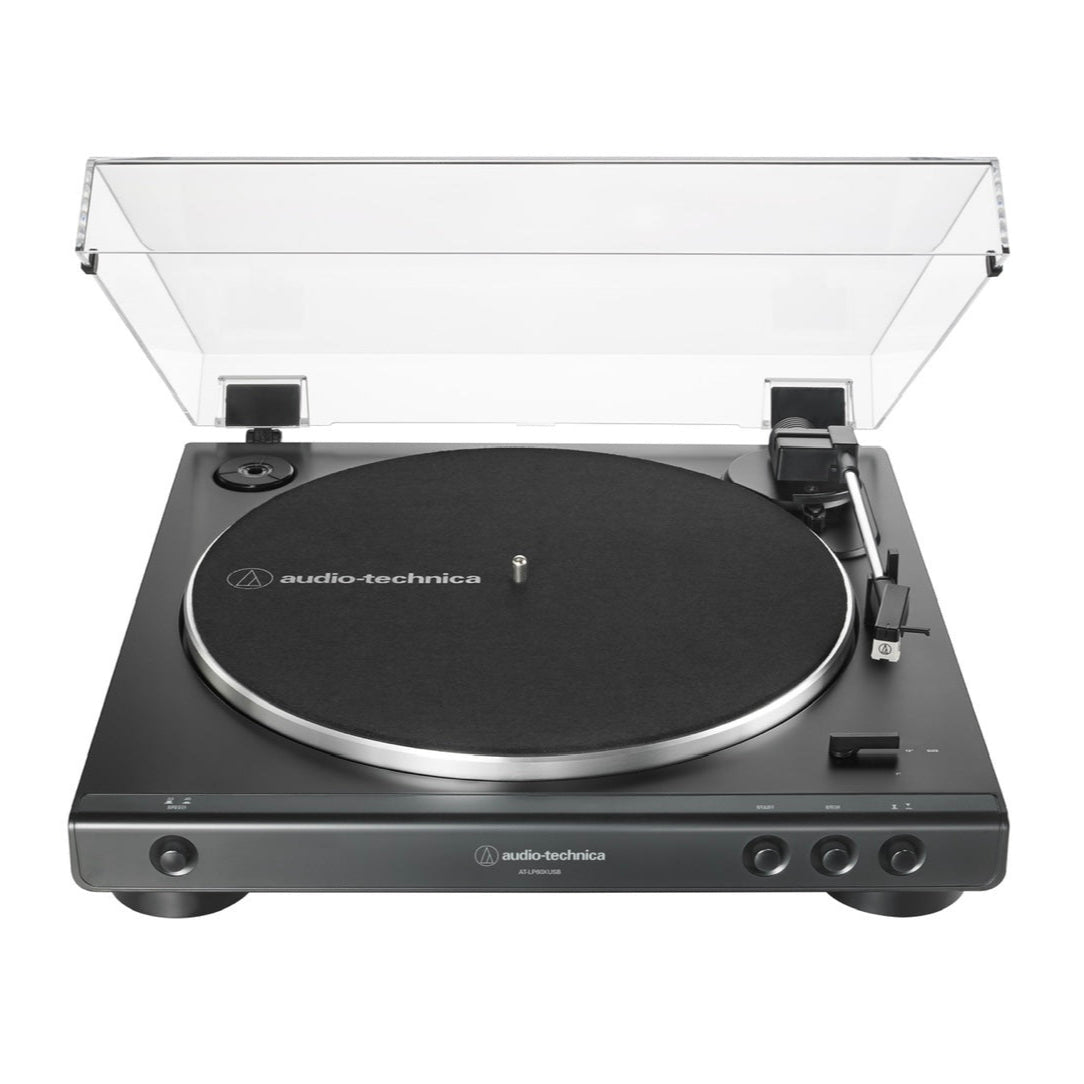

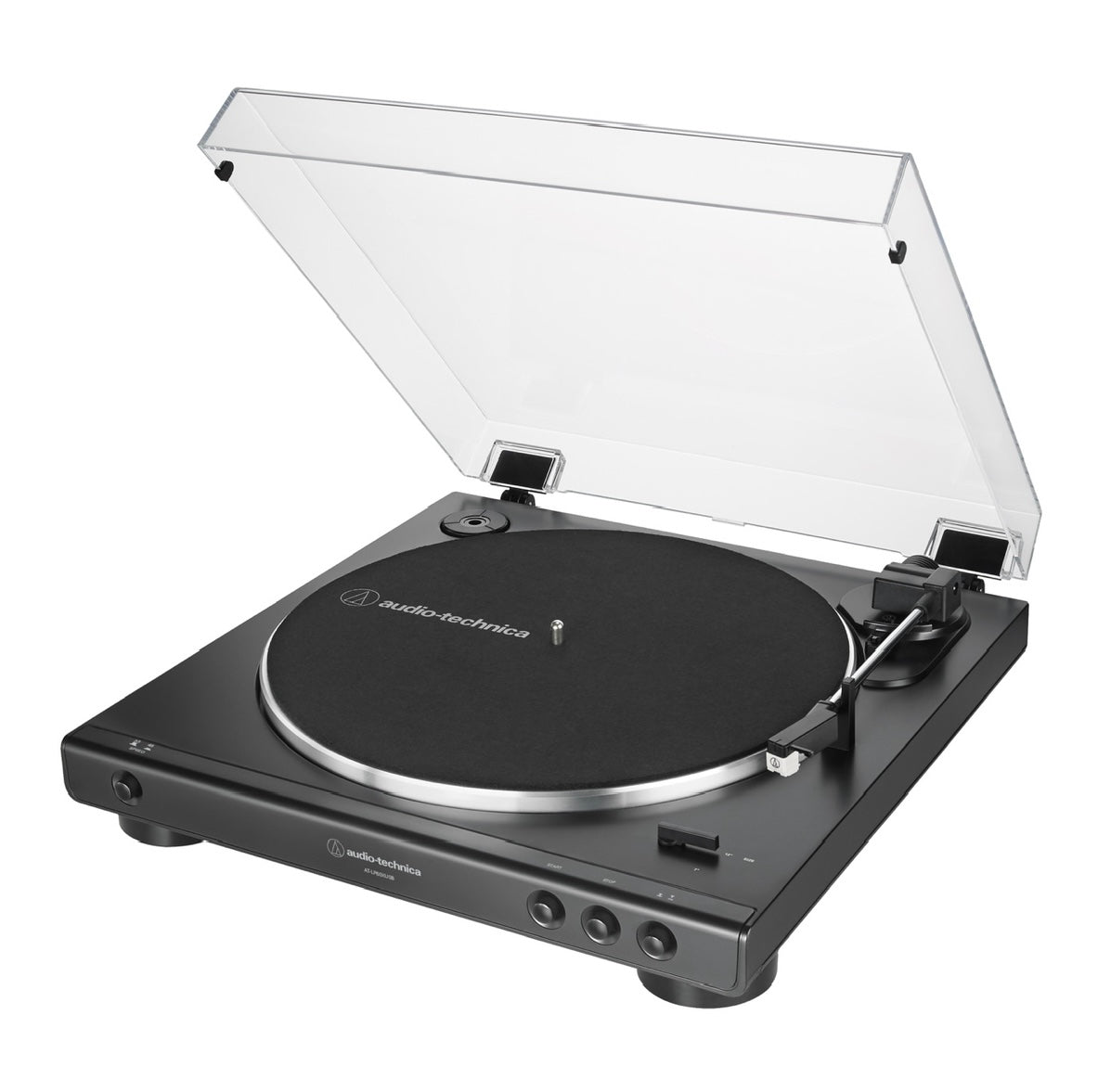

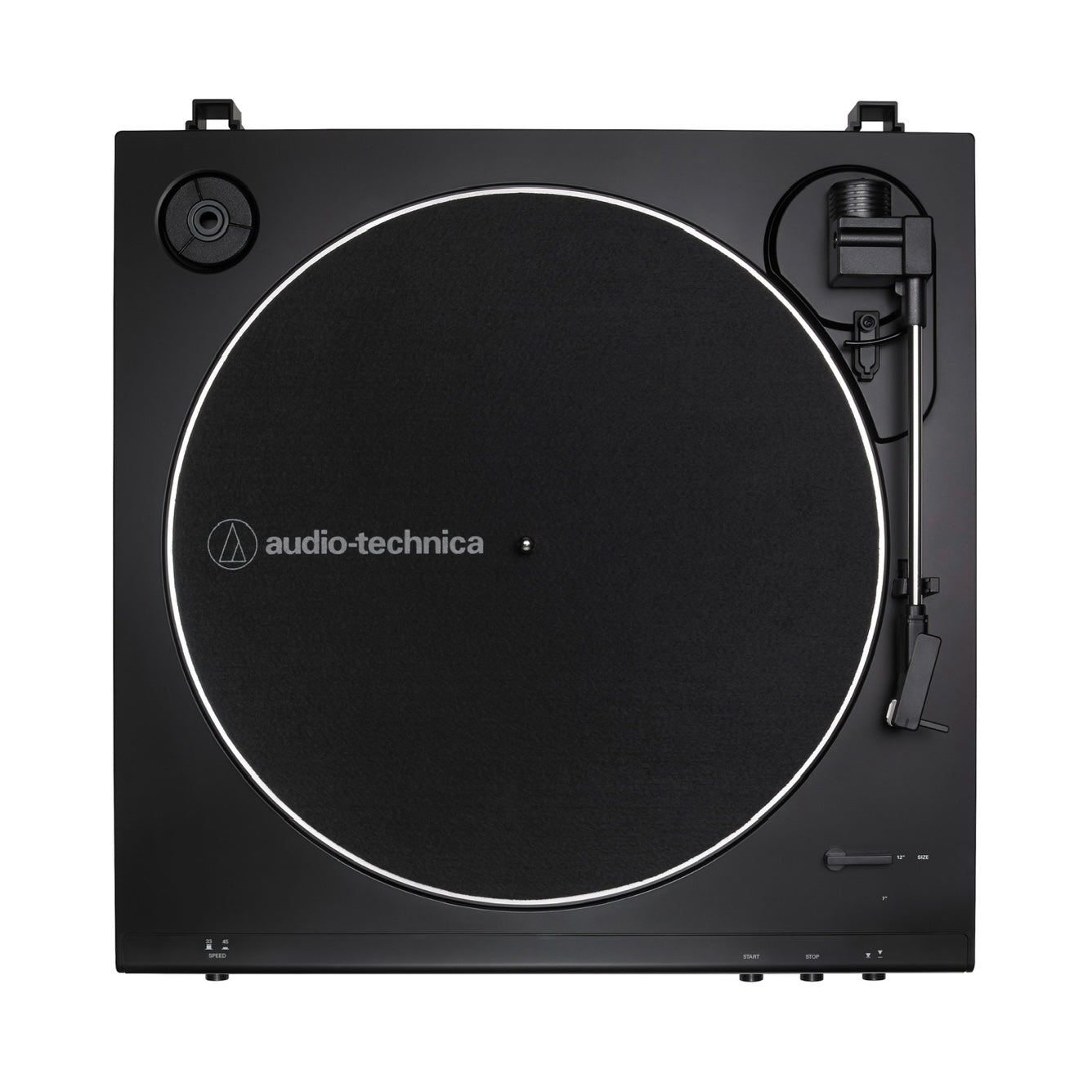

AT-LP60XUSB
AT-LP60XUSB
With the AT-LP60XUSB fully automatic belt-drive turntable you can experience your vinyl’s high-fidelity audio directly or convert it to digital. The AT-LP60XUSB plays both 33-1/3 and 45 RPM records and is equipped with a USB output that allows direct connection to your computer.
With the AT-LP60XUSB fully automatic belt-drive turntable you can experience your vinyl’s high-fidelity audio directly or convert it to digital. The AT-LP60XUSB plays both 33-1/3 and 45 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. In addition to the USB output, the turntable is also equipped with a detachable RCA output cable (3.5 mm male to dual RCA male) and a built-in switchable phono preamp so you can connect directly to your home stereo, powered speakers, computer and other components, whether they have a dedicated phono input or not.
This updated version of the AT-LP60-USB features a redesigned tonearm base and headshell to improve tracking and reduce resonance. Noise is further reduced by the inclusion of an AC adapter that moves the AC/DC conversion outside of the chassis where its impact on the signal chain is limited.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the AT-LP60XUSB’s Dual Magnet™ cartridge with replaceable stylus. The cartridge is integrated into the headshell for assured performance and ease of setup. The original stylus can be replaced by the ATN3600LC (sold separately). For those looking to further enhance your audio experience, the ATN3600LE elliptical stylus can also be purchased.
The turntable comes with a 45 RPM adapter and a removable hinged dust cover.
Available in black (AT-LP60XUSB-BK) and gun-metal (AT-LP60XUSB-GM)
Features
Features
Experience your vinyl’s high-fidelity audio directly or convert it to digital
Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
Anti-resonance, die-cast aluminum platter
Redesigned tonearm base and headshell for improved tracking and reduced resonance
Integral Dual Magnet™ phono cartridge with replaceable diamond stylus (ATN3600LC)
AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
Built-in switchable phono pre-amplifier for phono- or line-level output
Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)
Includes: detachable RCA output cable (3.5 mm male to dual RCA male), 45 RPM adapter, and removable hinged dust cover
Available in black (AT-LP60XUSB-BK) and gun-metal (AT-LP60XUSB-GM)
Specifications
Specifications
Turntable
Type Belt drive turntable, fully automatic
Motor DC servo-controlled
Drive Method Belt-drive
Speeds 33-1/3 RPM, 45 RPM
Turntable Platter Aluminum
Wow and Flutter Less than 0.25% (WTD) @ 3 kHz
Signal-to-Noise Ratio >50 dB (DIN-B)
Output Level Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec; Pre-amp “LINE”: 150 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain 36 dB nominal, RIAA equalized
USB Function A/D, D/A: 16 bit 44.1 kHz or 48 kHz USB selectable
Power Supply Requirements 100 to 240 V, 50/60 Hz, 0.6 A Max.
Dimensions 359.5 mm (14.15") W x 97.5 mm (3.84") H x 373.3 mm (14.70") D
Weight 2.6 kg (5.73 lbs)
Accessories Included Dust cover, Felt mat, Platter (with drive belt), 45 RPM adapter, RCA audio cable (approx. 1.2 m (3.9')), USB cable (approx. 1.9 m (6.2')), AC adapter (approx. 1.5 m (4.9'))
AC Adapter 12 V, 2 A
Replacement Stylus ATN3600LC
Notes USB operation system requirements
PC or Mac with an available USB port (USB1.1 or higher)
Windows 7 or above, or Mac OS X or above
