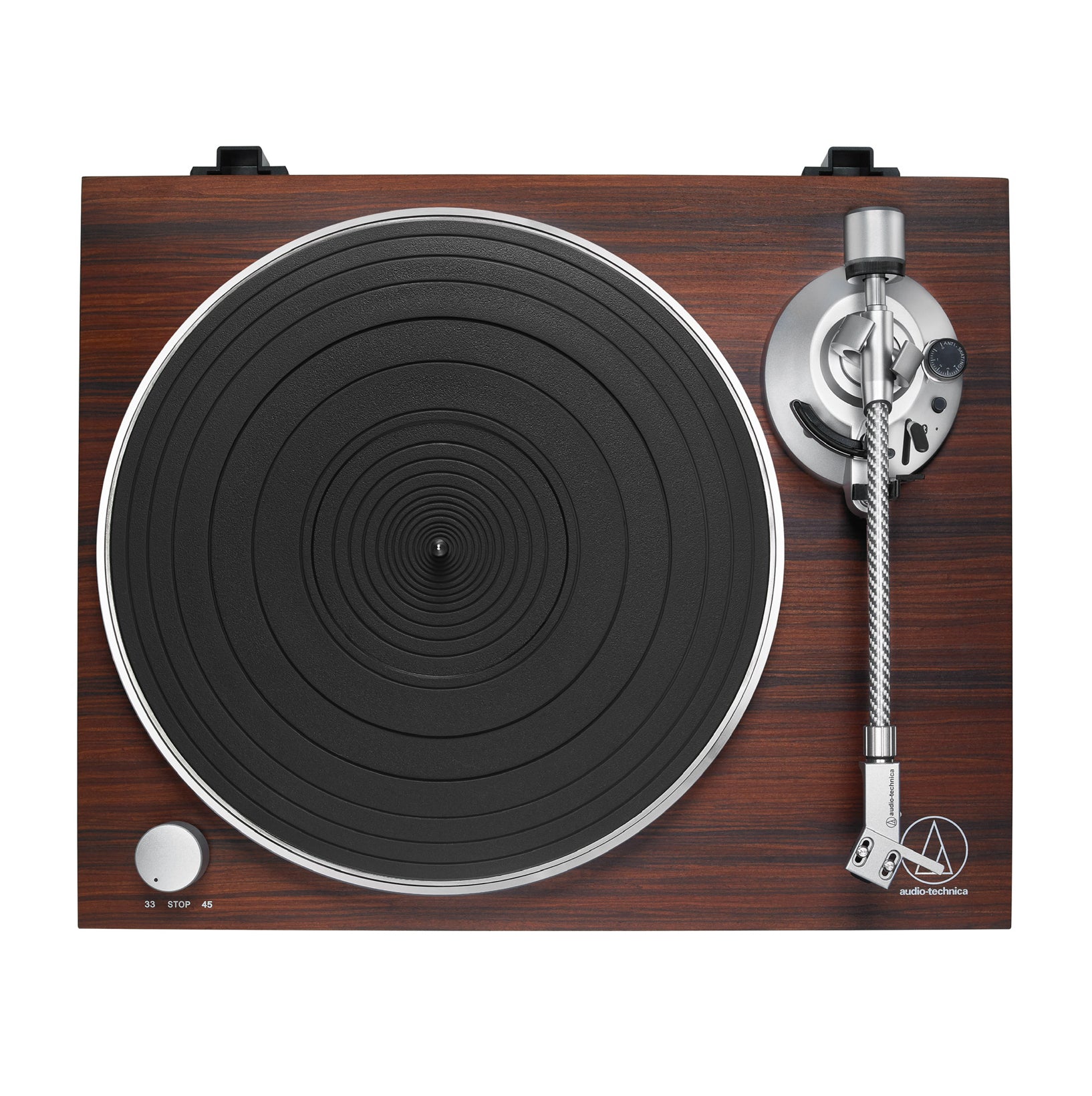

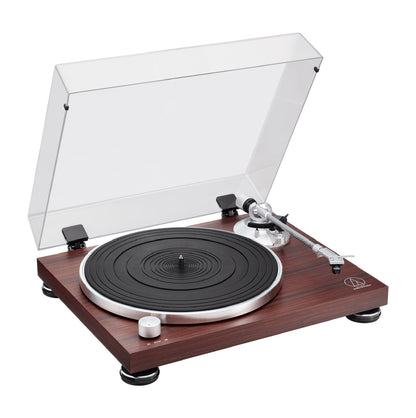

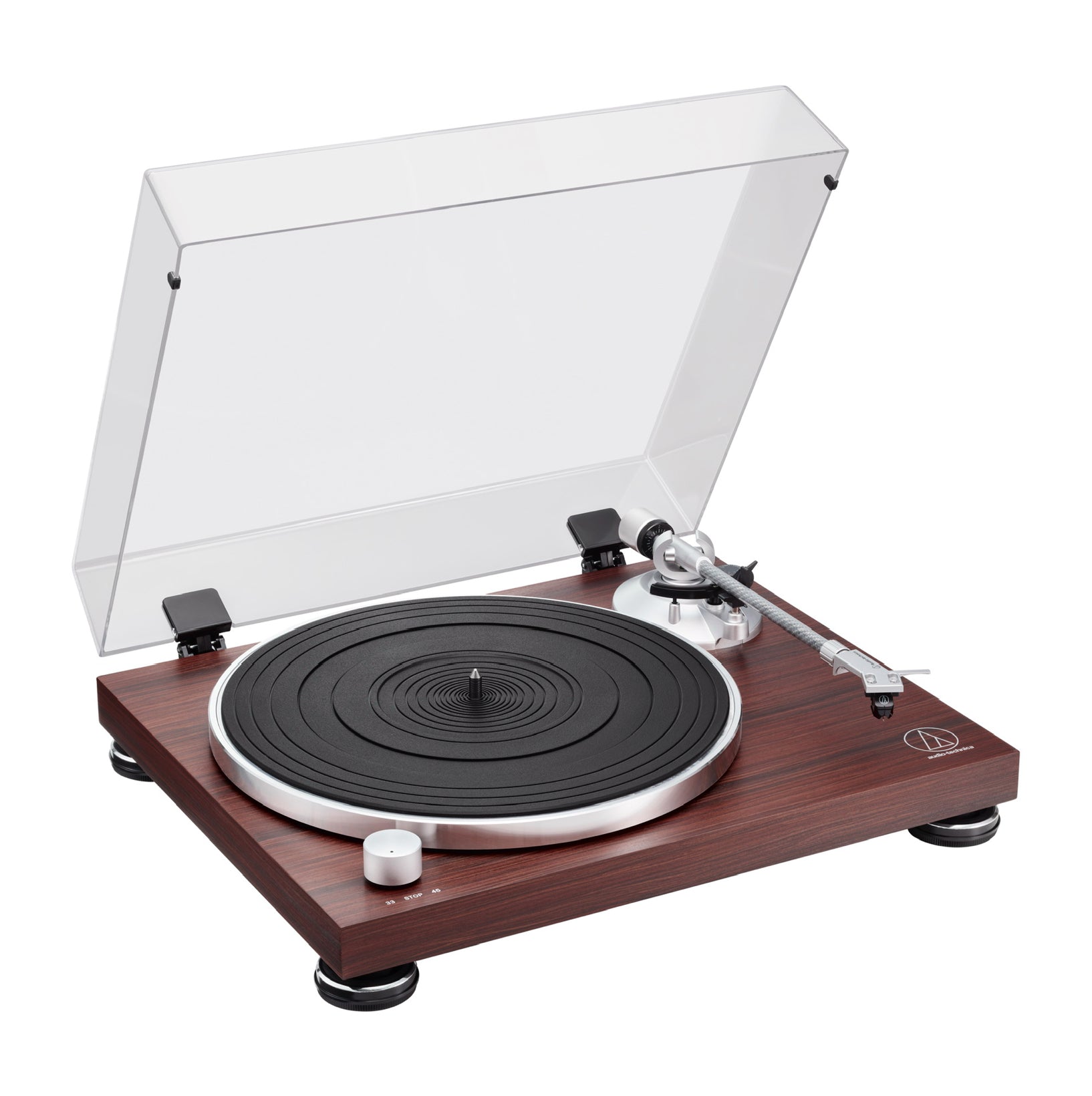

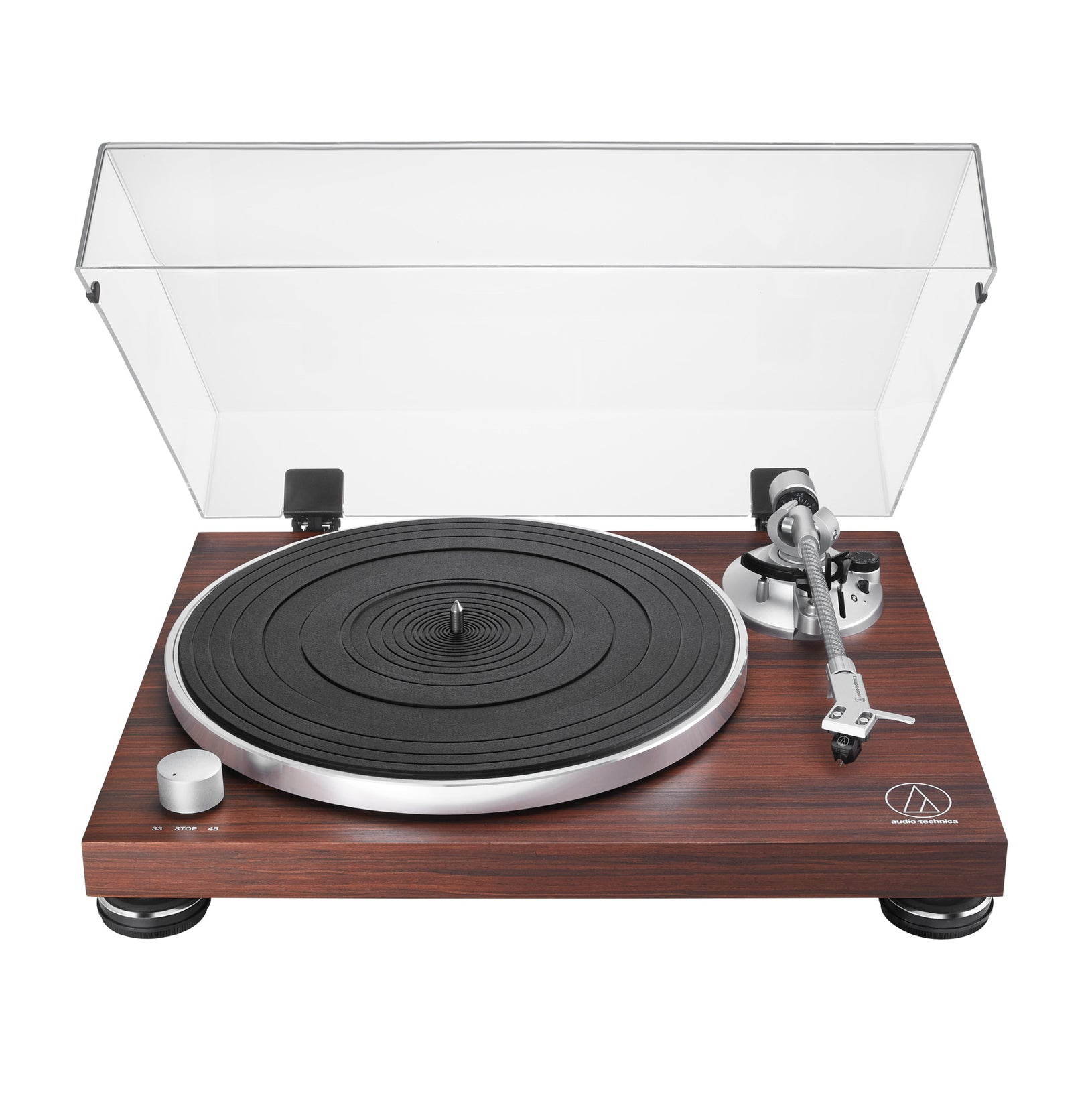

AT-LPW50BT-RW (Rosewood)
AT-LPW50BT-RW (Rosewood)
The AT-LPW50BT-RW extends Audio-Technica’s line of fully manual, belt-drive wood turntables by adding the option of wireless connectivity. Now you can enjoy optimal high-fidelity audio reproduction from vinyl with your choice of wired or wireless operation.
The AT-LPW50BT-RW features an anti-resonance 30 mm thick MDF (medium density fiberboard) plinth, with a stunning rosewood-finished wood veneer, to dampen low-frequency acoustical feedback, and a sensor-monitored motor to ensure accurate platter rotation speeds of 33-1/3 and 45 RPM.
The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and a matching matte-silver AT-HS4 universal ½"-mount headshell with a black AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
The AT-LPW50BT-RW is equipped with a built-in selectable phono pre-amp and a detachable dual RCA output cable to enable direct wired connection to components with or without a dedicated phono input. The turntable also connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology.
Features
Features
Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
Motor features a speed-sensor system to maintain accurate platter rotation speed
Adjustable dynamic anti-skate control
Professional anti-resonance, die-cast aluminum platter with rubber mat
AT-HS4(silver) universal 1/2"-mount headshell and AT-VM95E (black) Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
The AT-VM95Ecartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
Anti-resonance 30 mm thick MDF (medium density fiberboard) plinth with rosewood-finished wood veneer
Built-in switchable phono pre-amplifier for phono or line-level output
AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover
Specifications
Specifications
Turntable
Type Belt-drive manual turntable
Motor DC servo with Active Speed Stabilization
Drive Method Belt drive
Speeds 33-1/3 RPM, 45 RPM
Turntable Platter Die-cast aluminum
Wow and Flutter < 0.15 % WRMS (33 RPM) at 3 kHz
Signal-to-Noise Ratio > 60 dB
Output Level PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE: 200 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain 35 dB nominal, RIAA equalized
Power Supply Requirements 100 to 240 V, 50/60 Hz, 0.5 A Max
Power Consumption 1.8 W
Dimensions 420 mm (16.54") x 340 mm (13.39") x 126 mm (4.96") (W x D x H)
Weight 5.5 kg (12 Ibs)
Accessories Included • Dust cover • Rubber mat • Platter (with drive belt) • Dust cover hinges • Counterweight • Headshell (AT-HS4 SV) with VM stereo cartridge (AT-VM95EBK) • 45-RPM adapter • RCA audio cable (Approx. 1.0m (3.3')) • AC adapter (Approx. 1.5m (4.9'))
AC Adapter 12 V, 1.0 A
Tonearm Type Static balanced straight carbon tonearm
Effective Arm Length 223.6 mm
Overhang 18.6 mm
Tracking Error Angle Less than 2.0°
Stylus Pressure Adjustment Range 0 to 3.0 g
Applicable Cartridge Weight (including headshell) 11.5 to 16.5 g
Replacement Stylus AT-VMN95EBK (sold separately)
Replacement Headshell AT-HS4 SV (sold separately)
Replacement Belt AT-LPW50BT exclusive belt (sold separately)
Communication System Bluetooth version 5.2
Frequency Band 2.402 GHz to 2.480 GHz
Maximum RF Output 15 mW EIRP
Maximum Communication Range Line of sight - approx. 10 m (33')
Modulation Method GFSK, Pi/4DQPSK, 8DPSK
Compatible Bluetooth Profile A2DP
Support Codec SBC
